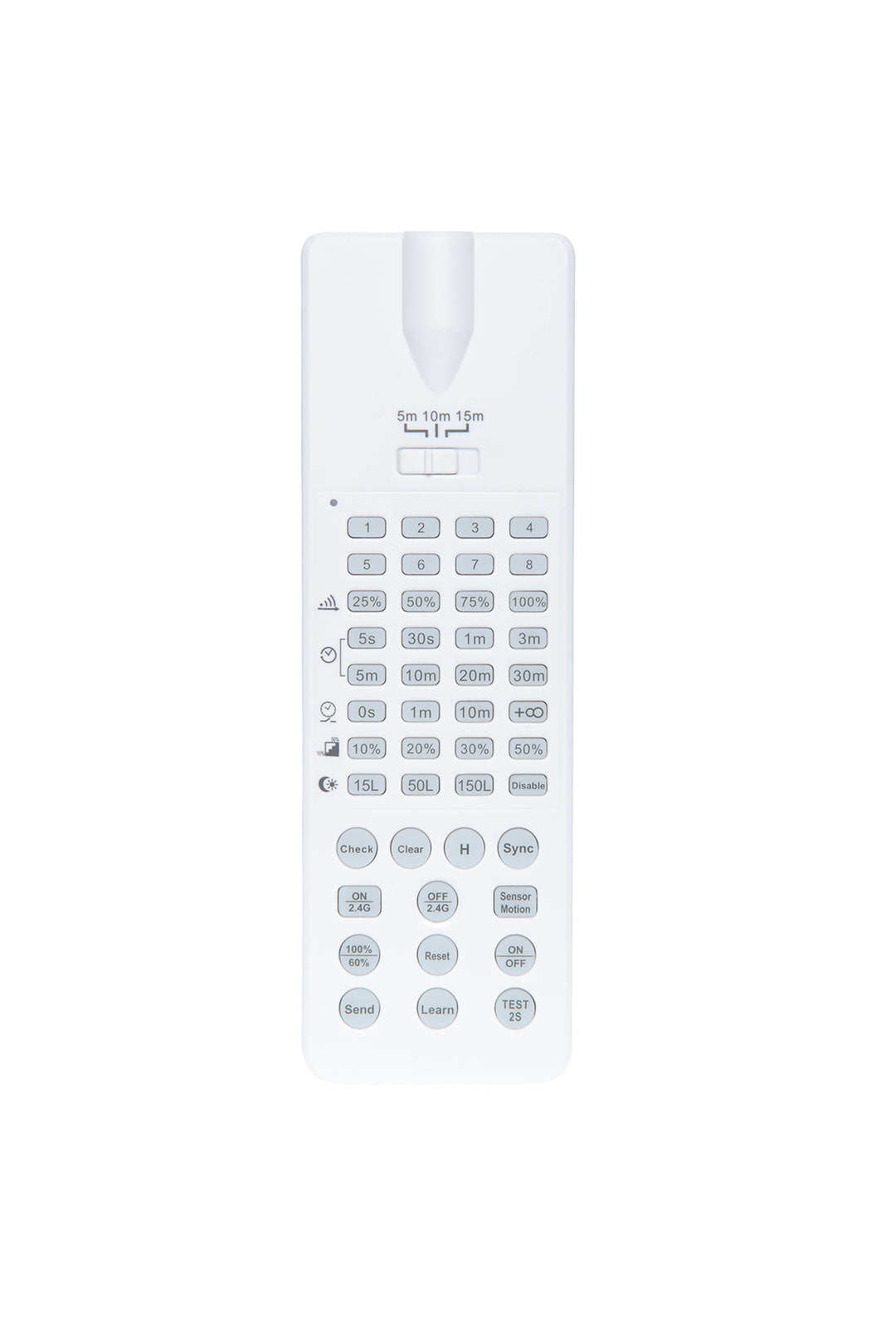

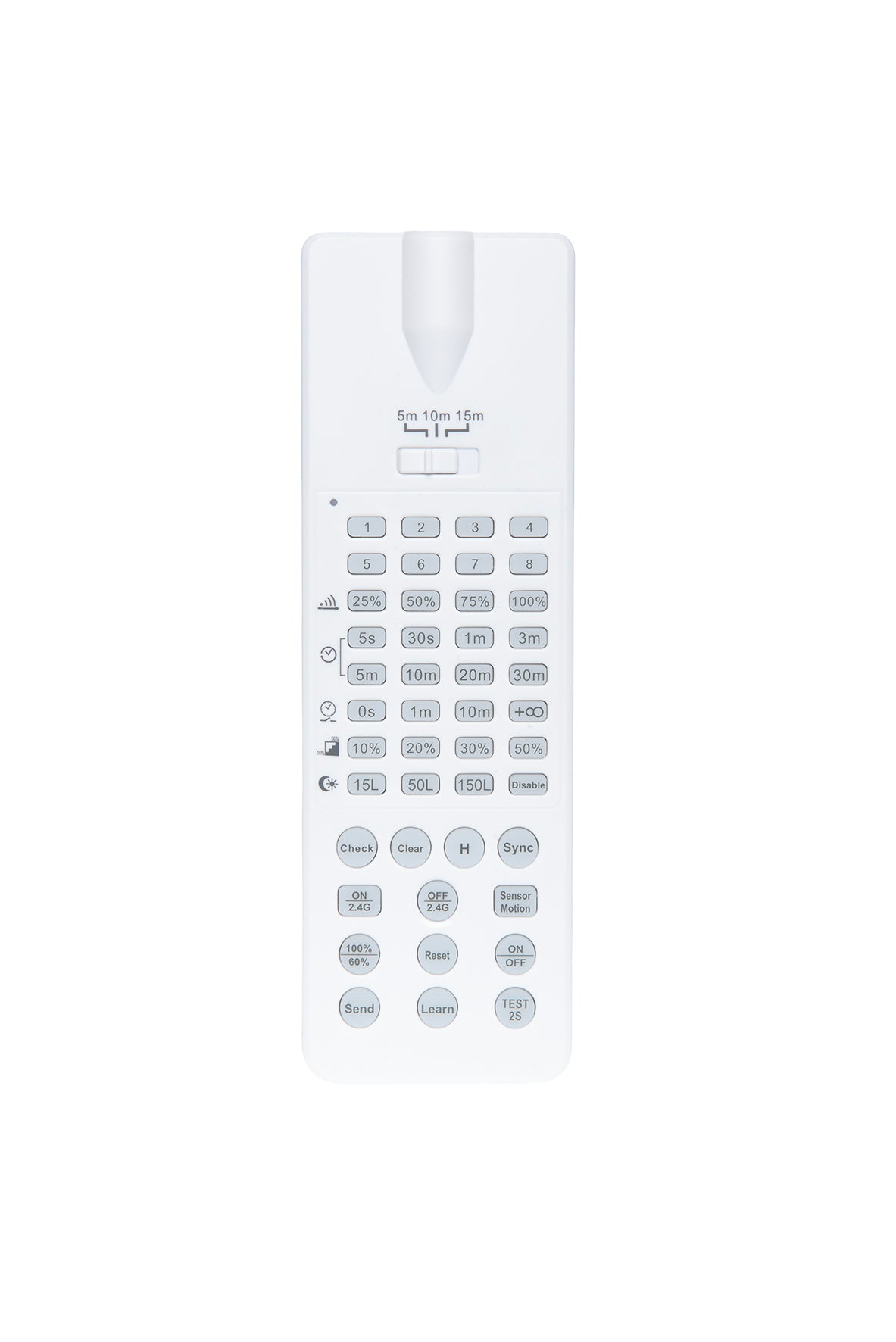

DOTLUX Remote control for MISTRALsmart PIR Sensor 5435-2

Name: DOTLUX Remote control for MISTRALsmart PIR Sensor 5435-2
Brand: Dotlux GmbH
SKU: DL-5437-1
Price: 41.57 EUR
Availability: InStock

Manufacturer: Dotlux GmbH

Manufacturer:

Item number: DL-5437-1

Item number:

34,93 €

41,57 €

excl. VAT incl. VAT

Sale Sold out (incl. VAT)

Taxes included. Shipping calculated at checkout.

181 in stock

Delivery time: 1-3 working days at your home

Free shipping on orders over €199

Your legal guarantee rights

Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller.

More information (Your Europe)

Download the official document (PDF)

View full details

The remote control allows sensors to be grouped into up to 8 groups.
Sensors without a group assignment are by default in the public group status.
With a press of a button, 2.4G wireless networking can be activated, allowing sensors within a group to send and receive signals.
The "Check" button is used to query a sensor's group membership.
The "Clear" button can be used to reset all group settings.
The "H" button regulates the range of the radio transmission.
Pressing and holding the "Sync" button starts parameter synchronization within a group.
The remote control allows setting brightness, detection range, hold time, and daylight threshold.
The "Reset" button restores all sensor parameters to factory settings.
With "F Mode," the sensor can be set to a continuous ON/OFF mode, including a memory function in case of power failure.
The "Learn" button allows parameters to be learned by gradually increasing brightness.
The "Send" button permanently saves the set parameters.
A special test mode allows automatic checking of all sensor functions.
The daylight sensor function can be activated, deactivated, or adjusted.
The hold time can be set in fixed time intervals between 5 and 30 minutes.
The detection range can be set to 25%, 50%, 75%, or 100%.
After switching on, the sensor requires an initialization time of approx. 40 seconds without function.
