DOTLUX DMX receiver/dimmer with integrated stand-alone function, 4 channels, 12-24V DC, 4x5A, DIN rail mounting

Name: DOTLUX DMX receiver/dimmer with integrated stand-alone function, 4 channels, 12-24V DC, 4x5A, DIN rail mounting
Brand: Dotlux GmbH
SKU: DL-5274
Price: 70.72 EUR
Availability: InStock

Manufacturer: Dotlux GmbH

Manufacturer:

Item number: DL-5274

Item number:

59,43 €

70,72 €

excl. VAT incl. VAT

Sale Sold out (incl. VAT)

Taxes included. Shipping calculated at checkout.

12 in stock

Delivery time: 1-3 working days at your home

Free shipping on orders over €199

Your legal guarantee rights

Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller.

More information (Your Europe)

Download the official document (PDF)

View full details

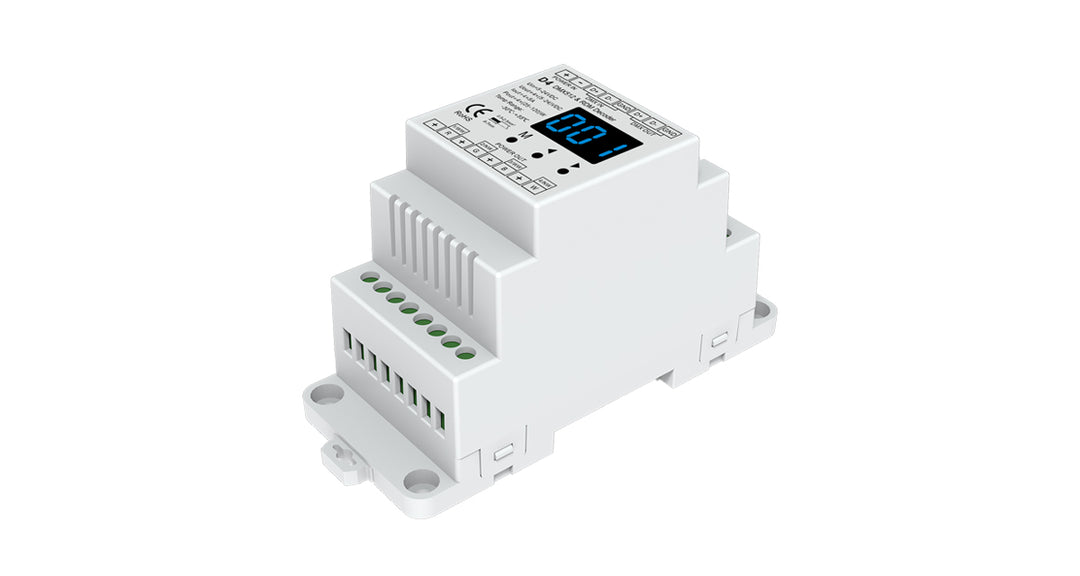

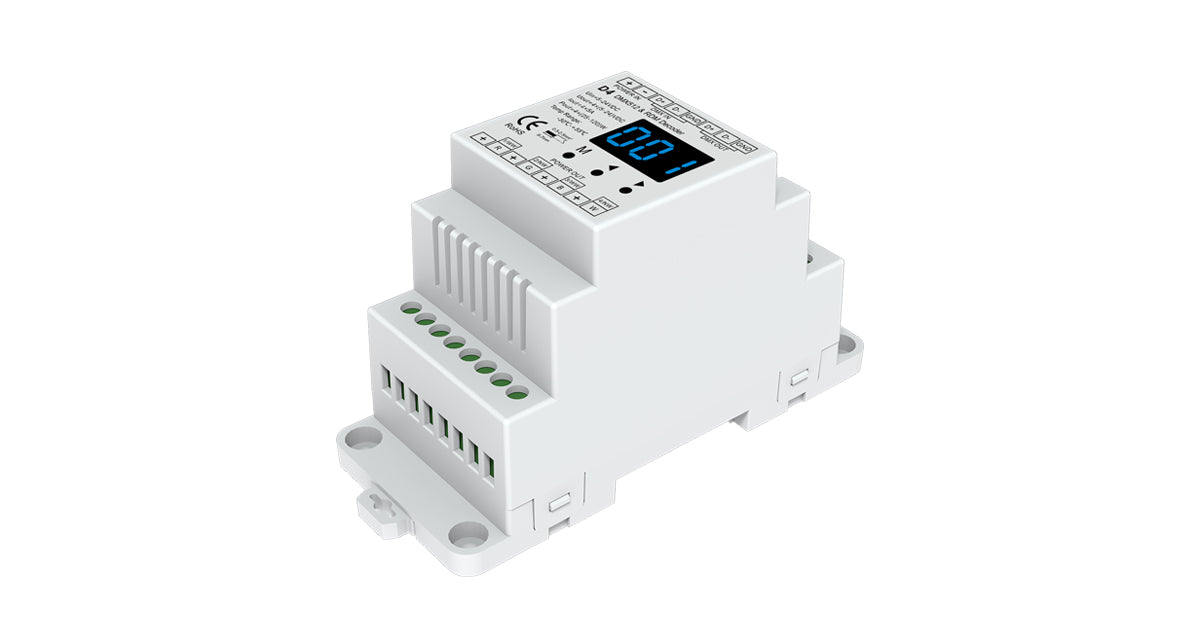

Digital numeric display, DMX start address setting via buttons.
Flexible input voltage 12-24V with screw terminals
The RDM function enables communication between the DMX master and the decoder.
DMX preset for 1/2 or 4-color stripes
Better suited for video recordings due to adjustable PWM frequency 2000/500Hz
Improved dimming effects thanks to an adjustable dimming curve (logarithmic or linear)
Stand-alone mode for RGB/RGBW and 4-channel dimmers. Built-in programs instead of the DMX signal.
Suitable for single-color, dual-color, RGB or RGBW constant voltage LED strips or modules.
Integrated protection circuit (overload, overheating, short circuit)
